The ultimate Digital Signage player
The mediaBOX Media Player is optimized for the SignagePlayer software. In fact, it is a plug and play device that can drive two full HD screens, each running different content. It includes key features like auto restart, scheduled power management, dual band wireless and more. So if you are looking for the ultimate Digital Signage player, the mediaBOX is it.

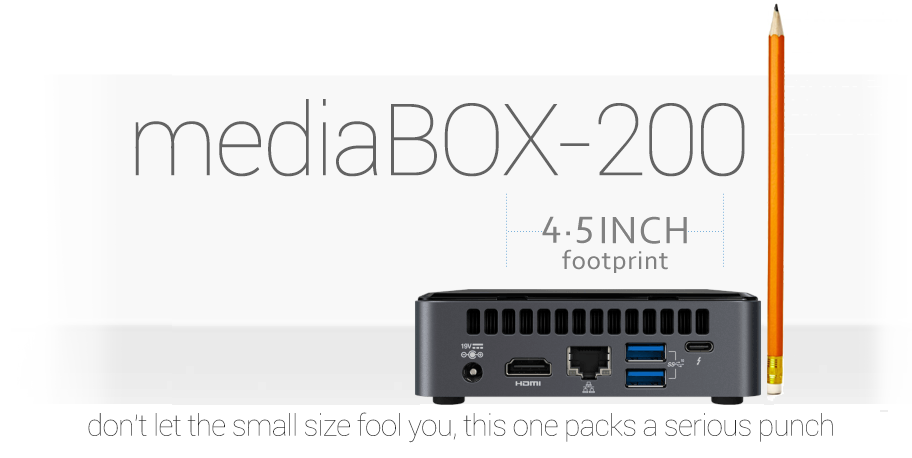

The mediaBOX-200 is a tiny 4 x 4 x 1.5” dedicated Digital Signage Player powered by the 3rd generation Intel® Core™ i3- 3217U processor.
The Player features two video ports and each one can play independent content of the other. It is also equipped with five USB ports and an Intel Gigabit Ethernet adapter to provide expandability and scale unseen in this form factor. It is loaded with a mSATA 32G SSD allowing for super quick response while moving away from traditional spinning disks, which have a much shorter life span. The special baked Windows 7 Embedded was developed by MediaSignage engineers to deliver unparalleled reliability while optimizing the OS for uninterrupted Digital Signage and Kiosk (touch) campaign playback
Imagine a computing device powerful enough to produce stunning visuals with responsive performance, yet small enough to drive your Digital Signage campaigns or highly demanding touch components in a tight spaces, well we did; the result is the mediaBOX-200 from MediaSignage.
With a visibly smart Intel® Core™ i3 processor in a highly customizable package, the mediaBOX-200 is a breakthrough in compact but impactful signage. Get reliable connectivity through Gigabit LAN or upgrade to Wi-Fi module. The mediaBOX-200 is also equipped with Smart boot technology so your presentation will begin playing within 5-7 seconds after the device has been turned on; thus ensuring the lowest possible downtime for your audience, even after a hard reboot or power outage.
Developed in response to a critical and growing demand for a reliable, inexpensive solution for the MediaSignage SignagePlayer software. The requirement was to deliver a high end Media Player without dramatically increasing the size, cost or management complexity of such a device.
These small factor Media Players were designed as a plug and play peripheral. Simply plug the mediaBOX-200, register it with your login e-mail and password and off you go to enjoy hassle free cutting edge Digital Signage and Kiosk / Touch technologies.
The mediaBOX-200 is packed with features including security and anti theft technologies, ultra quiet design to avoid distracting the viewer’s attention, low power consumption and internal PCIe ports.
It is by far the smallest device in the industry with such computing power and since MediaSignage engineers recompiled the Win7e OS to accommodate our special needs, you can rest assure you getting great value.
- - Pre-loaded Windows 7 embedded designed by our developers
- - Anti theft mounting option
- - VESA mount to hang on wall or behind screen (included)
- - 64G mSATA drive with OS loaded (included)
- - Internal memory DDR3 2GB memory (included)
- - Power supply and cord for 120-240V (included)
- - Dual-Core Intel Core i3-3217U (clocked at 1.8 GHz - 3 MB Cache)
- - Compact size for a very small footprint
- - Low power consumption
- - Dual mini display ports (HDMI converter included) video output
- - MSATA mini PCIe port and
- - Three USB 2.0 ports (one on front)
- - Audio controller Intel HD Audio
- - Dimensions: 116.6 x 112 x 39 mm ( 4 x 4 x 1.5 inches )
