FREE Digital Signage for everyone

Login to the Web Studio
Get Started, it's FREE





The ultimate Digital Signage player

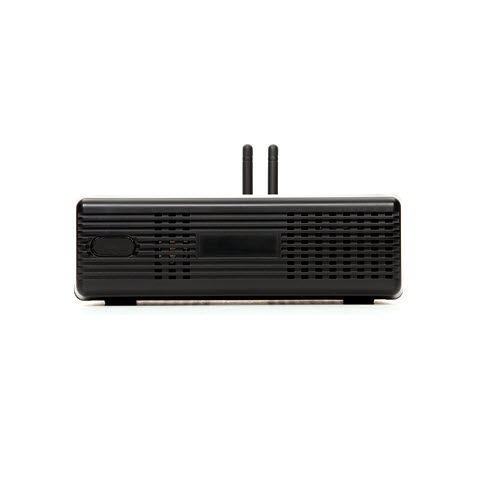

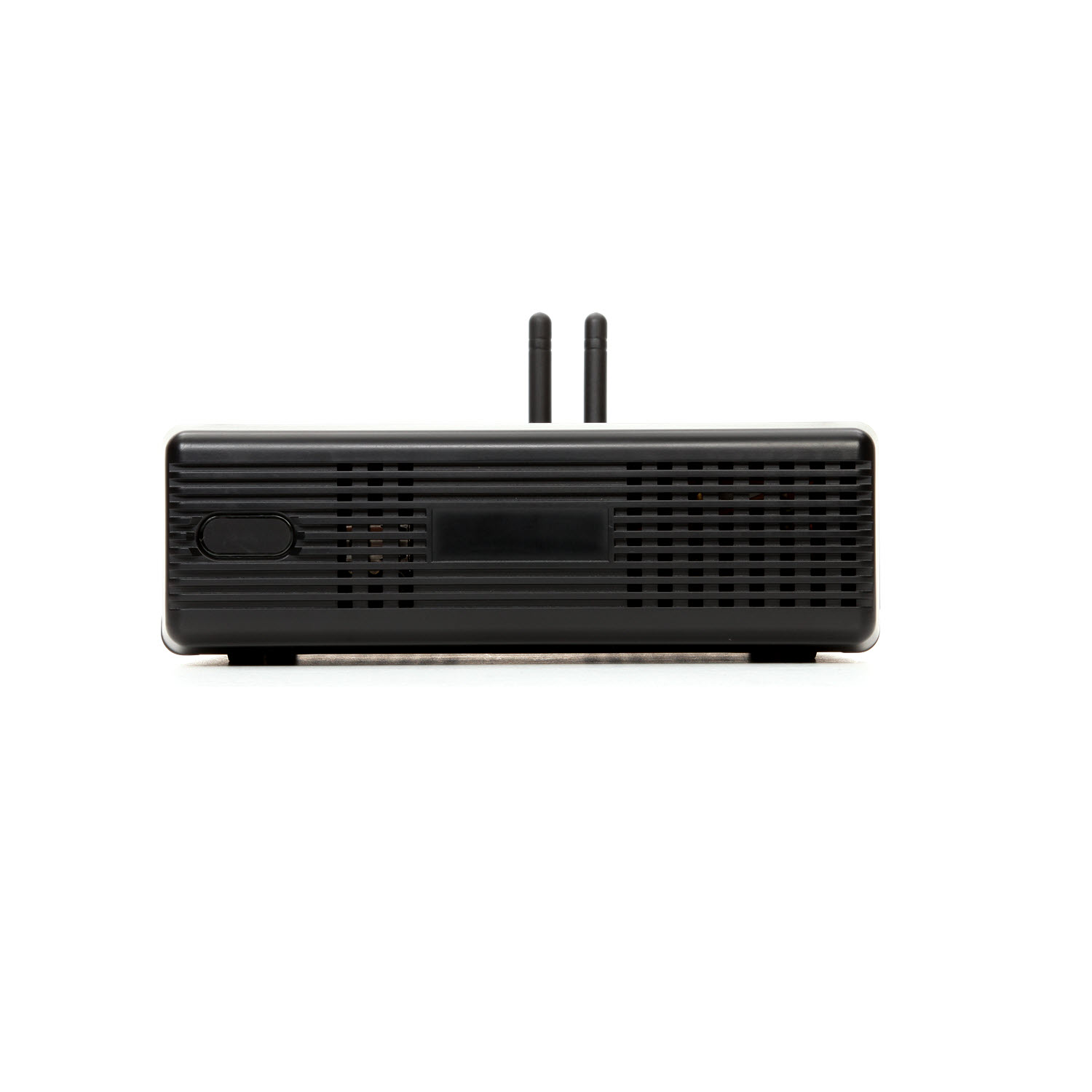

The mediaBOX Media Player is optimized for the SignagePlayer software. In fact, it is a plug and play device that can drive two full HD screens, each running  different content. It includes key features like auto restart, scheduled power management, dual band wireless and more. So if you are looking for the ultimate Digital Signage player, the mediaBOX is it.




At MediaSignage, we don’t force you to buy any “special” hardware to use our system. Our SignagePlayer software will run on almost any computer you’ve got. So, if you’ve already got a computer you’d like to use... great.

However, many of our customers are looking for small, simple computers that they can easily hide. That’s where the mediaBOX comes in. The mediaBOX is a small, plug and play Media Player that comes pre loaded with SignagePlayer and has been optimized for digital signage and Kiosk support.  So although our SignagePlayer software will run on almost ANY PC / Device, we do highly recommend the mediaBOX for it’s compact size and performance.

The mediaBOX is packed with peripherals including HDMI, DVI and VGA. This means that it can drive (2) monitors from a single Player. The optical sound delivers the highest quality audio possible. The mediaBOX was designed to run super quiet and extremely cool. The complete open metal case design allows for ultimate air flow and self cooling mechanism which eliminates the need for extra loud fans. The mediaBOX also has a number of mounting options including back of monitor screw mounts, front and back rail mounts, side mount brackets and even a built in picture style mounting holes directly on the back of the case.

Set to auto restart after power outages and will always reconnect to your network via a fast built in Wifi connection or 10/100/1000 Ethernet connection. Powered by a patented 150W fanless power supply, the mediaBOX is the ultimate Media Player.

Developed in response to a critical and growing demand for a reliable, inexpensive solution for the MediaSignage SignagePlayer software. The requirement was to deliver a high end Media Player without dramatically increasing the size, cost or management complexity of such a device.

These small factor Media Players were designed as a plug and play peripheral.  Simply plug the mediaBOX Media Player, register it with your login e-mail and password and off you go to enjoy hassle free cutting edge Digital Signage and Kiosk technologies.

The mediaBOX Media Players are packed with features including wired and wireless network interfaces, HDMI for HD support, SATA drive, Nvidia 9300 video cards and 5.1 Dolby surround Intel sound board, auto boot on power failures, portrait and landscape screen support, XPe OS and more. You can choose from a range of CPU options.

Integrated systems designed to deliver multimedia content performance in efficient, high density, easy to expand, and easy to manage manner. The mediaBOX  are the priced much lower compared to industry pricing standards but without compromising performance.


Installation

The mediaBOX Media Player can fit behind most wall mounts.
It will mount behind or next to the wall mounts using the wall mounting bracket.

You can hide the mediaBOX Player for an easy professional installation. The open design insures the mediaBOX remains cool in under normal room temperature conditions.

And since it is Wifi ready out of the box, the wiring requirement are simply just  120/240V power source since you can connect the HDMI / DVI / VGA directly from the mediaBOX to the back of the screen. Installation of the mediaBOX is a breeze.


Specifications

- Small form factor - install behind screen 210 x 192 x 62mm
- Intel® H67 Express chipset with 2nd generation Intel®
- QuickPath tech (Core2/i3/i5/i7 supported)
- Ethernet (10/100/1000Mbps) LAN connection
- Wifi module with dual antennas
- HDMI / DVI / VGA / DisplayPort
- Power up to x 2 HD screens with different content on each one
- Intel® Clear Video HD technology (Direct-X and Open GL)
- 4 USB 3.0 ports (2 on back panel, 2 via header)
- 8 USB 2.0 ports (4 on back panel, 4 via header)
- 1 HD Audio Port (7.1-channel) with Digital Optical S/PDIF
- Slim hard drive powered by SATA
- DDR3-1066/1333 2 x 240 pin DDR3 DIMM slots
- PCI Express x16
- Supports mediaTV Capture device for Live TV( sold separately)
- Internal 150PSU DC-DC convertor
- 120V-240V AC-DC convertor
- Supports USB Dynamic OS Restore system (sold separately)
- mediaTV Live capture device (sold separately)
- Mounting accessories (sold separately)


mediaBOX quick startup guide

mediaBOX manual W7e / Ubuntu (V.H67)

mediaBOX manual XPe / Windows (V. 9300)

mediaBOX manual Ubuntu / Linux (V. G43)
